Accessories For Laser Interferometers
“Customized Encoded Rail for Laser Interferometers”
Part No.: VLI-ER-ZY-1.5-25

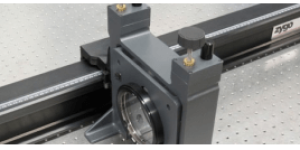

Customized Encoded Rail for Laser Interferometers
Specifications:
• Type :Encoded Rail
• Compatible with Verifire Laser Interferometer
• 1.5m rail with 1um resolution encoder for use with manual encoded 5 Axis Mount (Mounts can customized on user request).
• Recommend 10′ Optical table or longer
• Rails are made of high-grade extruded aluminium.
• The rail attaches and aligns to the mainframe with a ball mount interface or it can be mounted directly to the optical table.
• The interferometric rail has a 1 mm graduated ruler scale.
• The encoded rail has an encoder strip and is calibrated for linearity to less than 50 µm over the length of the rail.
Axis Rail Mount for Laser Interferometers

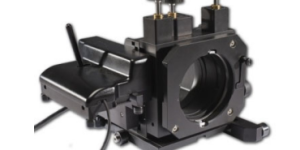

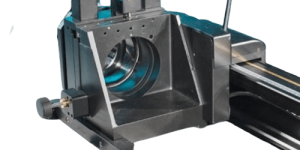

Manual 5-Axis Rail Mount for Laser Interferometer”
Part No.: VLI-5-AM-ZN-25
Item: Manual 5-Axis Rail Mount Part No.: VLI-5-AM-ZN-25
Specifications:
• Type : Encoded & Manual
• In-Built Integrated Encoder sensor
• Customized for selected Laser Interferometer
• 5-axis Rail Mount with integrated encoder read head and external display.
• X-Y Travel range: Provided as per the Application
• Tip & Tilt range: Provided as per the Application
• Can be used to measure ROC of test samples
• Compatible with most of the 4 in. accessories.
• All mounts provide for easy translation between catseye and confocal positions and feature a quick-release clamp that assures alignment to the rail and the optical axis.
